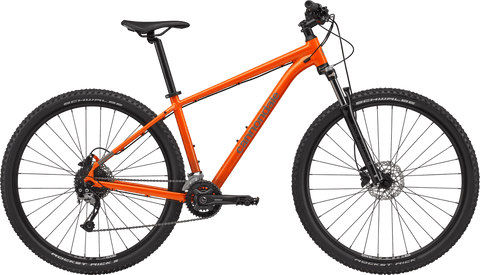

A mountain bike built to raise your game and ignite a passion for the trail. Cannondale Trail 6 2022 is designed for the mountains and ready for anything.
Highlights
- Light and durable SmartForm C3 Alloy frame
- SR Suntour XCM RL suspension fork, 100mm travel, remote lockout
- Shimano 9-speed drivetrain w/double chainring crank / Shimano hydraulic disc brakes
Where it thrives
Low-impact trails, gravel roads, leisurely ride
What it's built for
Handling, durability
DRIVETRAIN
Bottom Bracket
Sealed bearing cartridge, square taper
Chain
KMC X9, 9-speed
Crank
Shimano MT210, 36/22
Front Derailleur
Shimano Altus, 34.9 clamp
Rear Cogs
Shimano HG200, 11-36, 9-speed
Rear Derailleur
Shimano Alivio, Shadow SGS
Shifters
Shimano Alivio, 9-speed
FRAMESET
Fork
SR Suntour XCM-RL, 100mm, lockout, coil, 42mm offset (27.5") 46mm offset (29")
Frame
SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
Headset
Semi Integrated, 1-1/8"
WHEELS
Front Hub
Shimano HBTX 505
Rear Hub
Shimano FHTX505
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tire Size
2.25
Tires
Schwalbe Rocket Rick, 27.5/29 x 2.25", K-Guard
Wheel Size
29
BRAKES
Brake Levers
Shimano MT200 hydraulic disc
Brakes
Shimano MT200 hydraulic disc, 160/160mm RT10 rotors
COMPONENTS
Grips
Cannondale Dual-Density
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
Stem
6061 Alloy, 31.8, 7°
Features
SmartForm C3 Alloy
Simple yet sophisticated aluminum construction yields a light, lively frame that outperforms anything in its class.
SAVE Micro-Suspension
Delivers a smoother, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.
Slack and Stable
A slack 68° head angle creates exceptionally stable handling so that you can charge the descents with confidence.
Right-Sized Wheels
The smaller sizes of Trail roll on 27.5" wheels, while the larger sizes come with 29" wheels to deliver the best blend of fit, fast and fun for every rider.
StraightShot Internal Cable Routing
For an integrated look and easy maintenance, the shift and dropper post cables route cleanly through the StraightShot window in the down tube, while the rear brake line is secured outside the frame.
